Horizontal Laminar Flow Hood

Horizontal Laminar Flow Hood

White shield icon
Protection Type: Product, Environment
White industry icon
Industries: Healthcare, Biopharma
White clipboard icon
USP <797> Compliant
  • All Stainless Steel Construction
  • ISO 5 / Class 100 Laminar Flow Air in the Work Area
  • Full Width HEPA Filter ensures unidirectional airflow
  • IV hanging bar with 6 hooks in work area
Request a quote

Premium Quality, Superior Product Protection

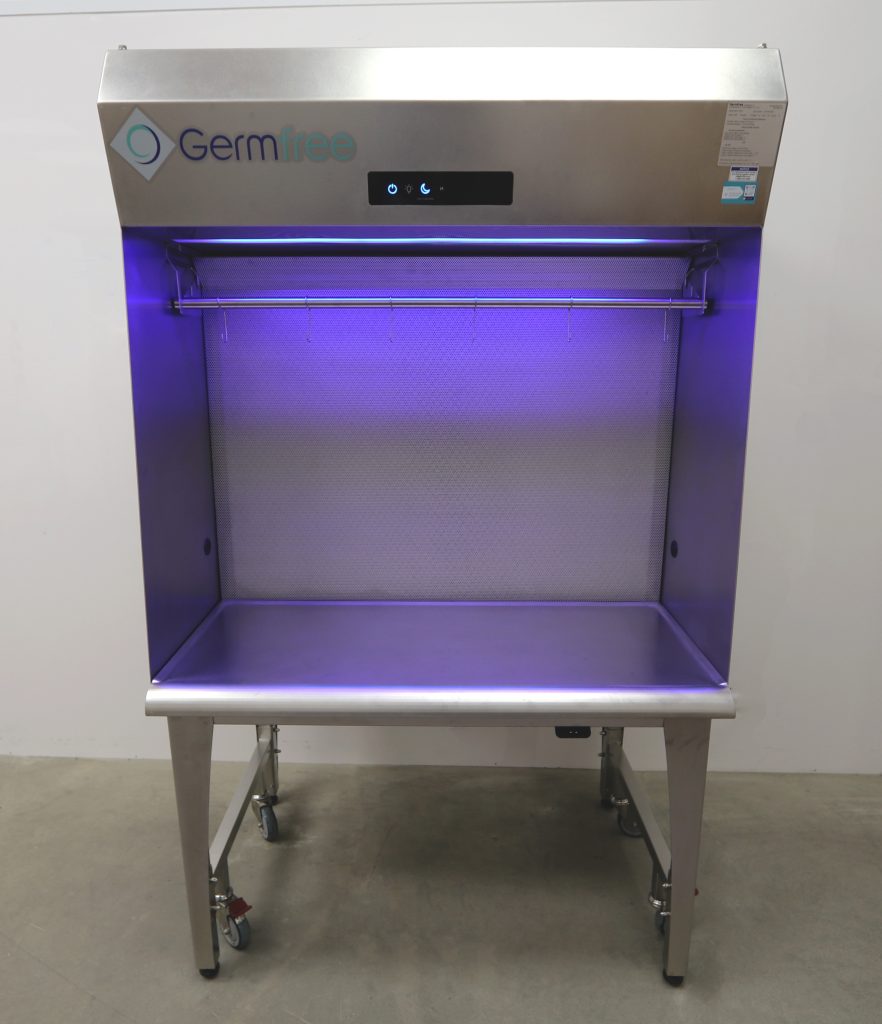

Our Horizontal Laminar Flow Hood products are USP 797 compliant and designed for the handling of sterile products in an aseptic working environment. The work area is continuously bathed with positive pressure ISO 5/Class 100 horizontal laminar flow air that has passed through a High Efficiency Particulate Air (HEPA) filter. This filter removes organisms and particulates 0.3 micron in size with an efficiency of 99.99%. The laminar airflow principle consists of moving individual streams of unidirectional, ultra-clean air along parallel lines with minimal turbulence. The HEPA filter is positioned in the rear of the work area and is protected by a removable, perforated metal diffuser.

Request a quote

Download CAD files & specs

z400z600z800

Suitability

Designed to meet the needs of multiple applications, the Horizontal Laminar Flow Workstation is ideal for a wide range of industries and facilities.

Horizontal Laminar Flow Hood Specifications

Z-Series
White standards icon on green diamond

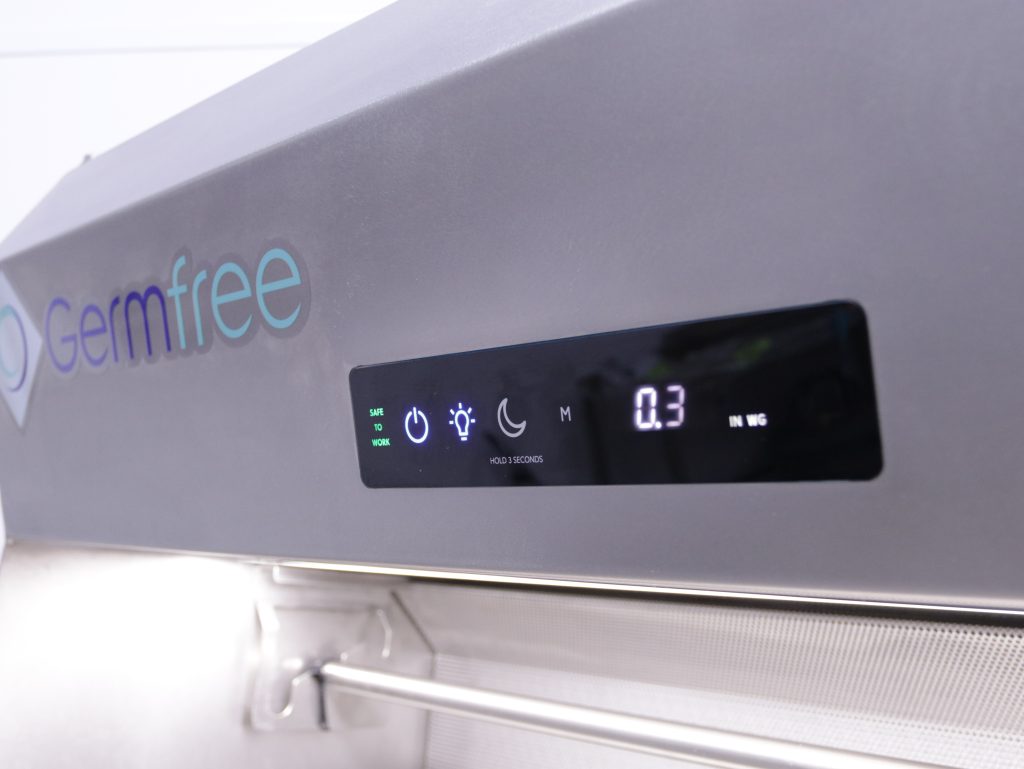

The Z-Series Horizontal Laminar Flow Hoods represent the ultimate in safety, dependability, and cleanability. Touch controls are highly cleanable and give the user full control of the workstation. Night mode allows the unit to run at a reduced airflow while not in use, greatly reducing energy consumption. Constructed of all stainless steel, these units are ideal for use within a cleanroom.
White mechanical icon on green diamond
Overall dimensions



Click the model number below to download dimensional drawings.

Model Width Depth Height
Z300 36" 32" 50"
Z400 48" 32" 50"
Z600 72" 32" 50"
Z800 96" 32" 50"
Model Width Depth Height
Z330 36" 40" 50"
Z430 48" 40" 50"
Z630 72" 40" 50"
Z830 96" 40" 50"
White mechanical icon on green diamond
Work area dimensions
Model Width Depth Height
Z300 35" 20" (22" including armrest) 35 3/4"
Z400 47" 20" (22" including armrest) 35 3/4"
Z600 71" 20" (22" including armrest) 35 3/4"
Z800 95" 20" (22" including armrest) 35 3/4"
Model Width Depth Height
Z330 35" 28" (30" including armrest) 35 3/4"
Z430 47" 28" (30" including armrest) 35 3/4"
Z630 71" 28" (30" including armrest) 35 3/4"
Z830 95" 28" (30" including armrest) 35 3/4"
White electrical icon on green diamond
Electrical

Z-Series Requires 120VAC,60Hz, 15A Circuit

Power Cord Length : 10 ft

(2)120VAC Duplex Outlets included standard in each side of the hood

(2) Sealed Data Ports included standard in each side of the hood

White light icon on green diamond
Lighting

Energy efficient LED

Night mode lighting

Visual red light integrated into low flow alarm

White filter icon on green diamond
Filters

Cleanroom Compliant Pre-Filter

Germfree SpillGuard for HEPA filter protection

HEPA Filter: 99.99% at 0.3 microns

White airflow icon on green diamond
Airflow

ISO 5 horizontal laminar flow air

White material icon on green diamond
Construction

Durable 16 & 18 Gauge 100% 304 Stainless Steel

Work Deck Material: 100% 304 Stainless Steel

Diffuser Material: 100% 304 Stainless Steel

IV Bar: Supplied Standard with 6 Hooks (Quantity of Hooks Dependent on Size)

Optional Seismic Anchoring Kit: Seismic Kit comes with floor & wall brackets for anchoring

White material icon on green diamond
Airflow Velocity

Unidirectional Horizontal Airflow of 90fpm +-20%

White mechanical icon on green diamond
Performance

Airflow Volume at 90 fpm

Z300: 765

Z400: 1006

Z600: 1531

Z800: 2056

Heat Rejected (BTU/Hour)

Z300: 820

Z400: 1200

Z600: 1264

Z800: 2022

Download Z-Series Technical Specification
