Smarthood™
Protection Type: Product, Environment
Industries: Healthcare
USP <797> Compliant
- Designed to run your IV workflow solution
- All components within sterile field

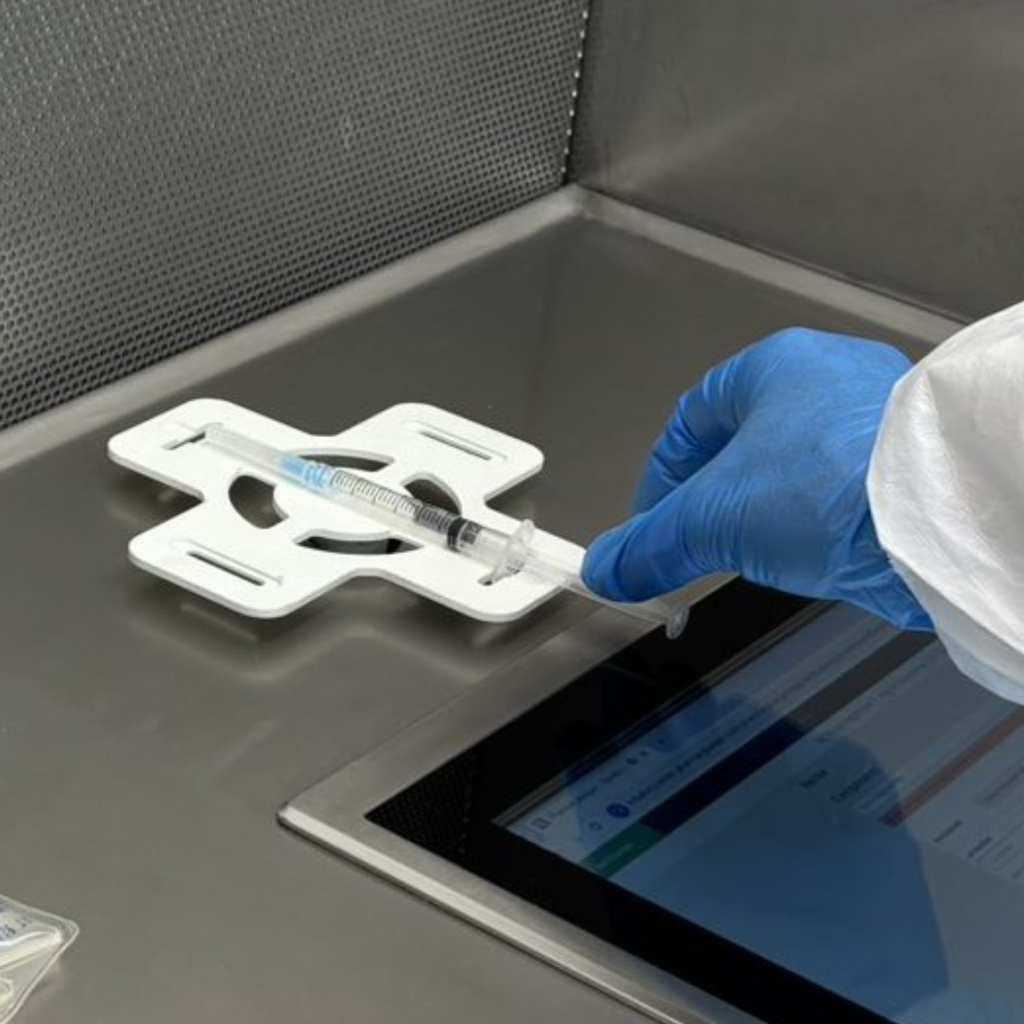

- Precise gravimetric measurements

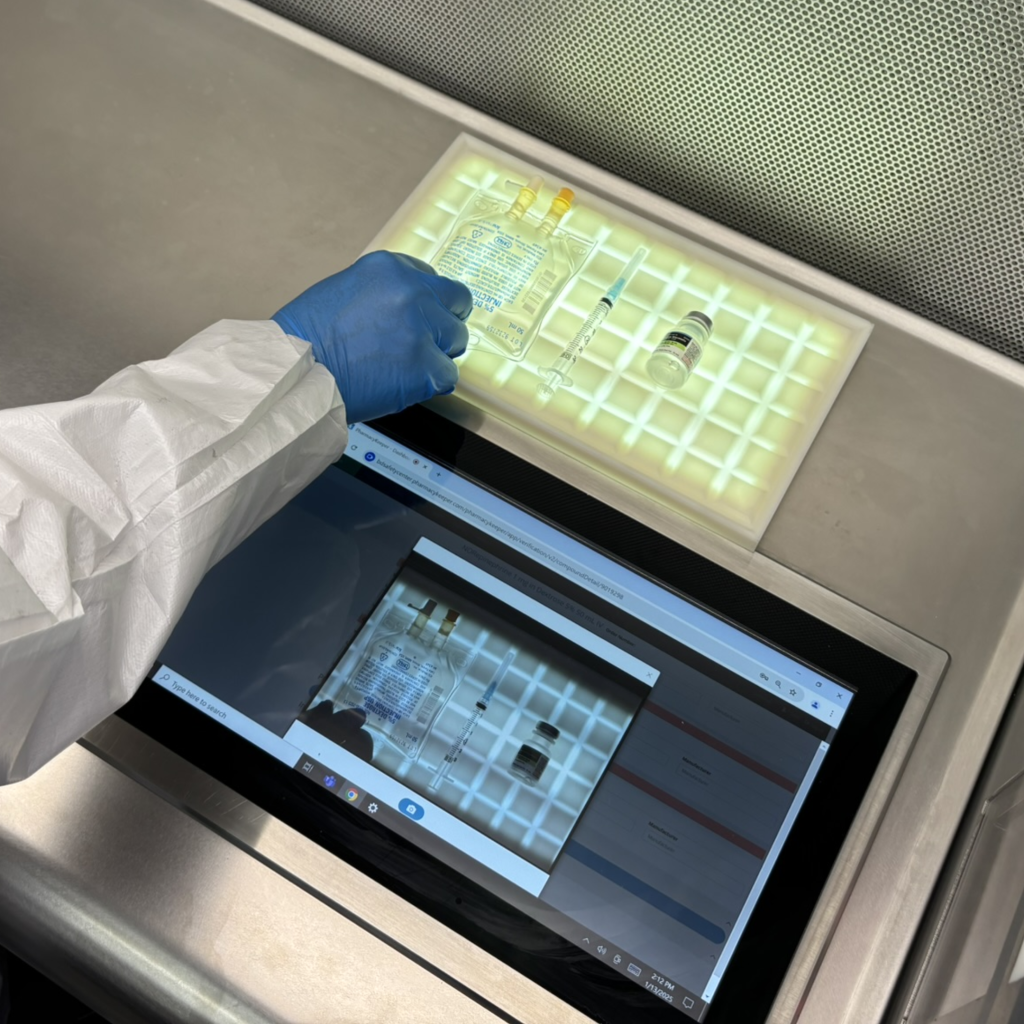

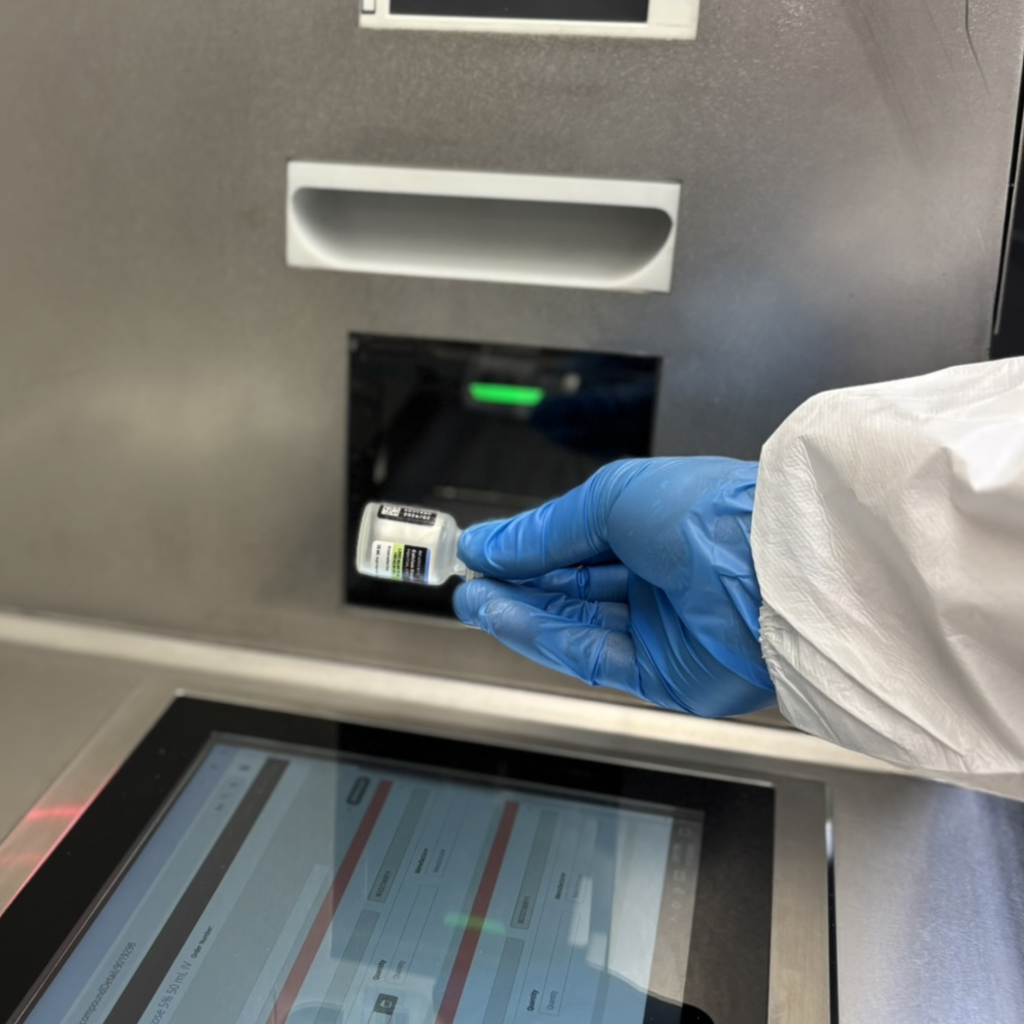

- No-touch scanning and photos
- Cleaner workspace

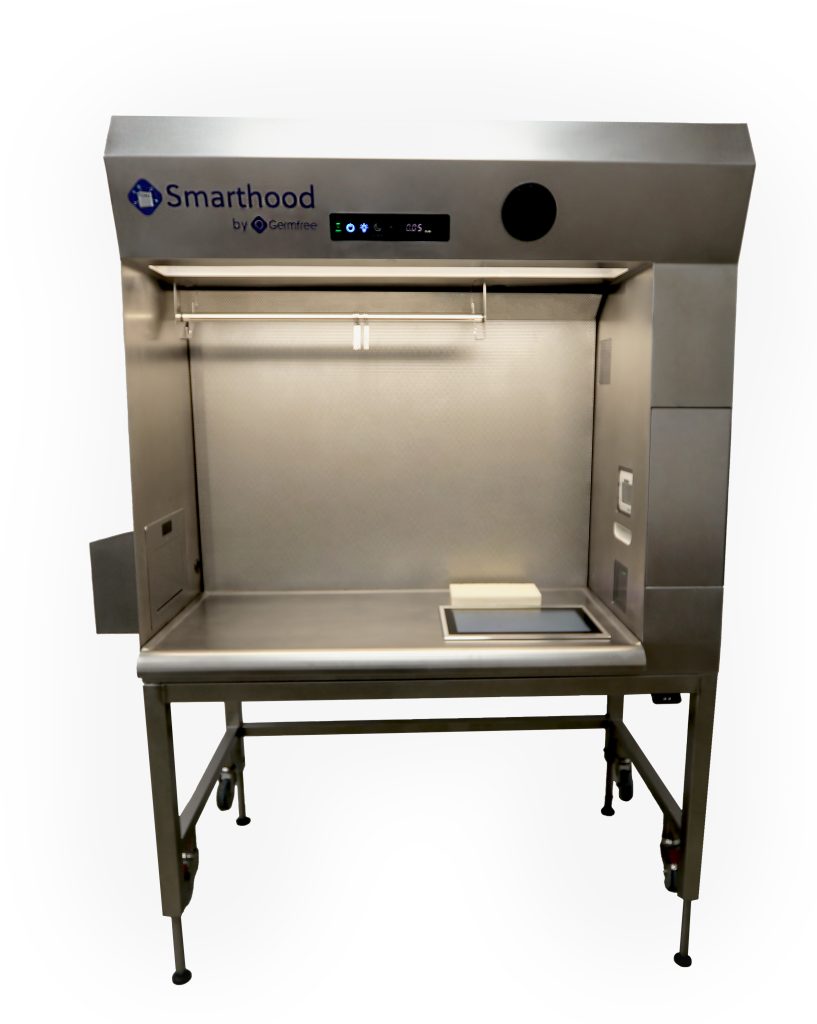

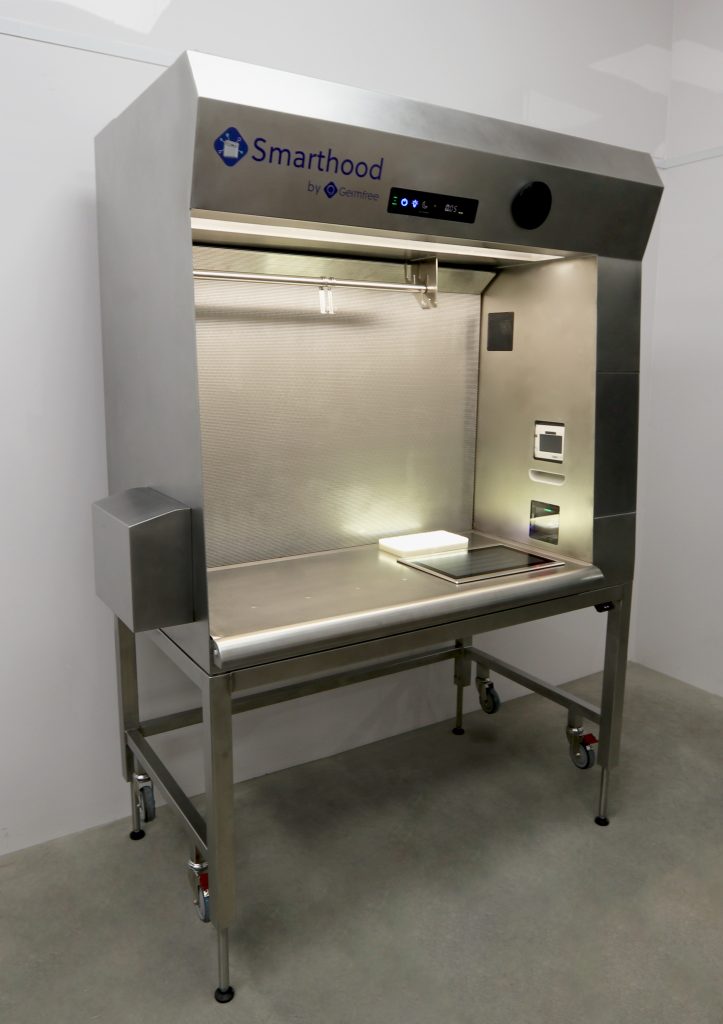

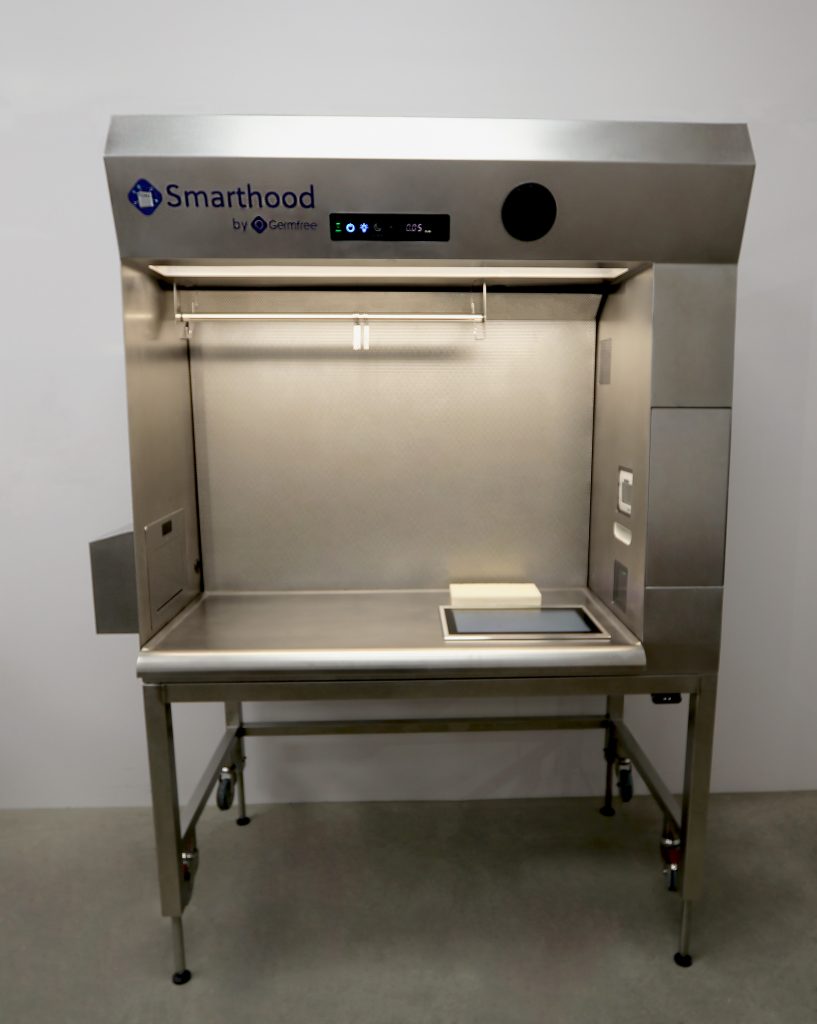

Introducing The World’s First Software Agnostic Smarthood™
Ready for workflow

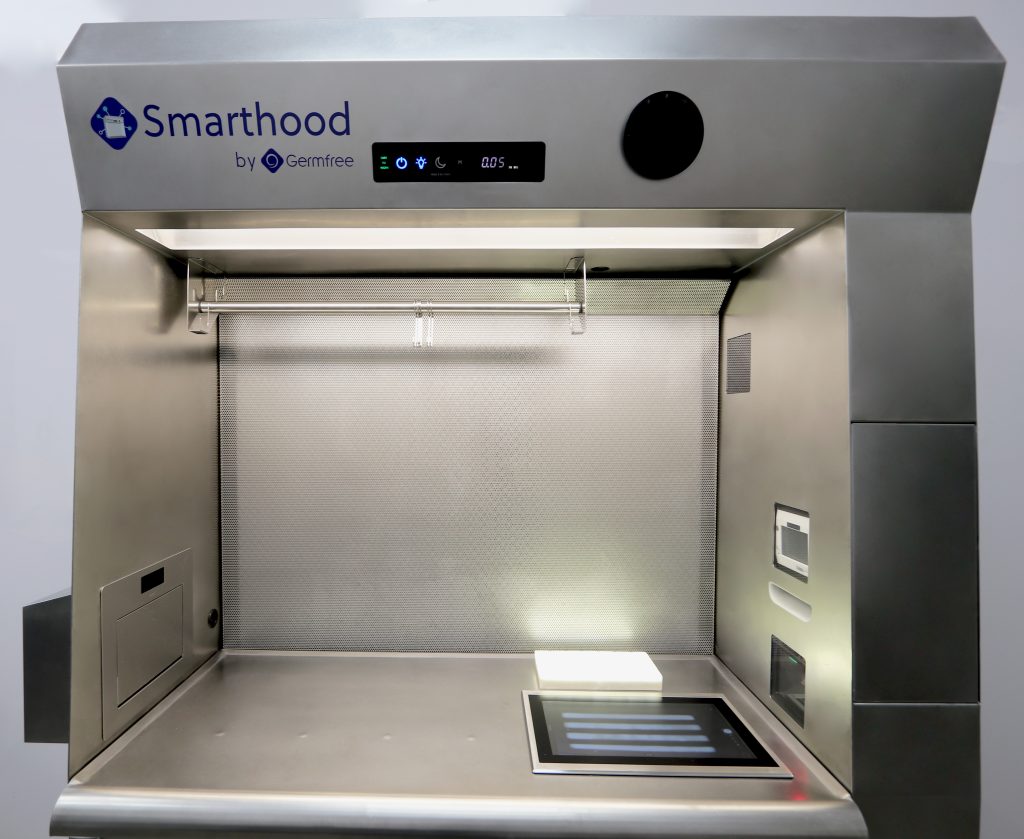

Smarthood™ seamlessly integrates all hardware components of the IV Workflow into your Primary Engineering Control, enabling the end user to scan components, capture high-quality photos, utilize gravimetric measurements, and print sterilized labels—all within the hood. By eliminating the clutter of external wires and peripherals, Smarthood™ simplifies your workspace, enhances efficiency, and ensures greater compliance, helping you focus on delivering safer patient care.

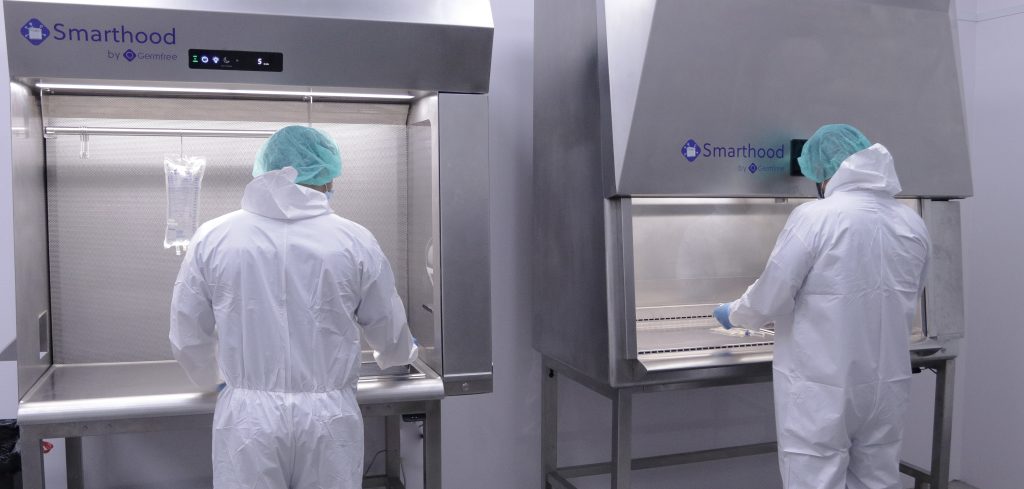

Available in both 4 and 6-foot Horizontal Laminar Flow and Class II BSCA configurations, Smarthood™ operates as a terminal on your network without requiring additional interfaces. Its all-in-one design streamlines implementation, so you can devote more time to what matters most: patient care.
Related resources
Sign Up For Smarthood™ Early Adopter Updates!
What Can I Expect from Signing Up?
Exciting updates and announcements
Smarthood product demos
Suitability
Designed to meet the needs of multiple applications, Smarthood™ is ideal for a wide range of industries and facilities.
Applications
Featured
Specifications
The Smarthood™ unit is combined with seamlessly integrated peripheral devices, making it easy to run IV workflow software while maintaining a clean workspace and airflow.
Overall dimensions
| Model | Width | Depth | Height |
|---|---|---|---|
| Z300 | 36" | 32" | 50" |
| Z400 | 48" | 32" | 50" |
| Z600 | 72" | 32" | 50" |
| Z800 | 96" | 32" | 50" |
| Model | Width | Depth | Height |
|---|---|---|---|
| Z330 | 36" | 40" | 50" |
| Z430 | 48" | 40" | 50" |
| Z630 | 72" | 40" | 50" |
| Z830 | 96" | 40" | 50" |
Work area dimensions
| Model | Width | Depth | Height |
|---|---|---|---|
| Z300 | 35" | 20" (22" including armrest) | 35 3/4" |
| Z400 | 47" | 20" (22" including armrest) | 35 3/4" |
| Z600 | 71" | 20" (22" including armrest) | 35 3/4" |
| Z800 | 95" | 20" (22" including armrest) | 35 3/4" |
| Model | Width | Depth | Height |
|---|---|---|---|
| Z330 | 35" | 28" (30" including armrest) | 35 3/4" |
| Z430 | 47" | 28" (30" including armrest) | 35 3/4" |
| Z630 | 71" | 28" (30" including armrest) | 35 3/4" |
| Z830 | 95" | 28" (30" including armrest) | 35 3/4" |
Electrical
Z-Series Requires 120VAC,60Hz, 15A Circuit
Power Cord Length : 10 ft
(2)120VAC Duplex Outlets included standard in each side of the hood
(2) Sealed Data Ports included standard in each side of the hood
Lighting
Energy efficient LED
Night mode lighting
Visual red light integrated into low flow alarm
Filters
Cleanroom Compliant Pre-Filter
Germfree SpillGuard for HEPA filter protection
HEPA Filter: 99.99% at 0.3 microns
Airflow
ISO 5 horizontal laminar flow air
Construction
Durable 16 & 18 Gauge 100% 304 Stainless Steel
Work Deck Material: 100% 304 Stainless Steel
Diffuser Material: 100% 304 Stainless Steel
IV Bar: Supplied Standard with 6 Hooks (Quantity of Hooks Dependent on Size)
Optional Seismic Anchoring Kit: Seismic Kit comes with floor & wall brackets for anchoring
Airflow Velocity
Unidirectional Horizontal Airflow of 90fpm +-20%
Performance
Airflow Volume at 90 fpm
Z300: 765
Z400: 1006
Z600: 1531
Z800: 2056
Heat Rejected (BTU/Hour)
Z300: 820
Z400: 1200
Z600: 1264
Z800: 2022
Smarthood™ Integrations
Runs existing IV workflow software
Built-in:
- Mettler Toledo Scale
- Teguar 15.6″ LCD Touchscreen Computer
- Zebra SP72 Series Single-Pane Scanner

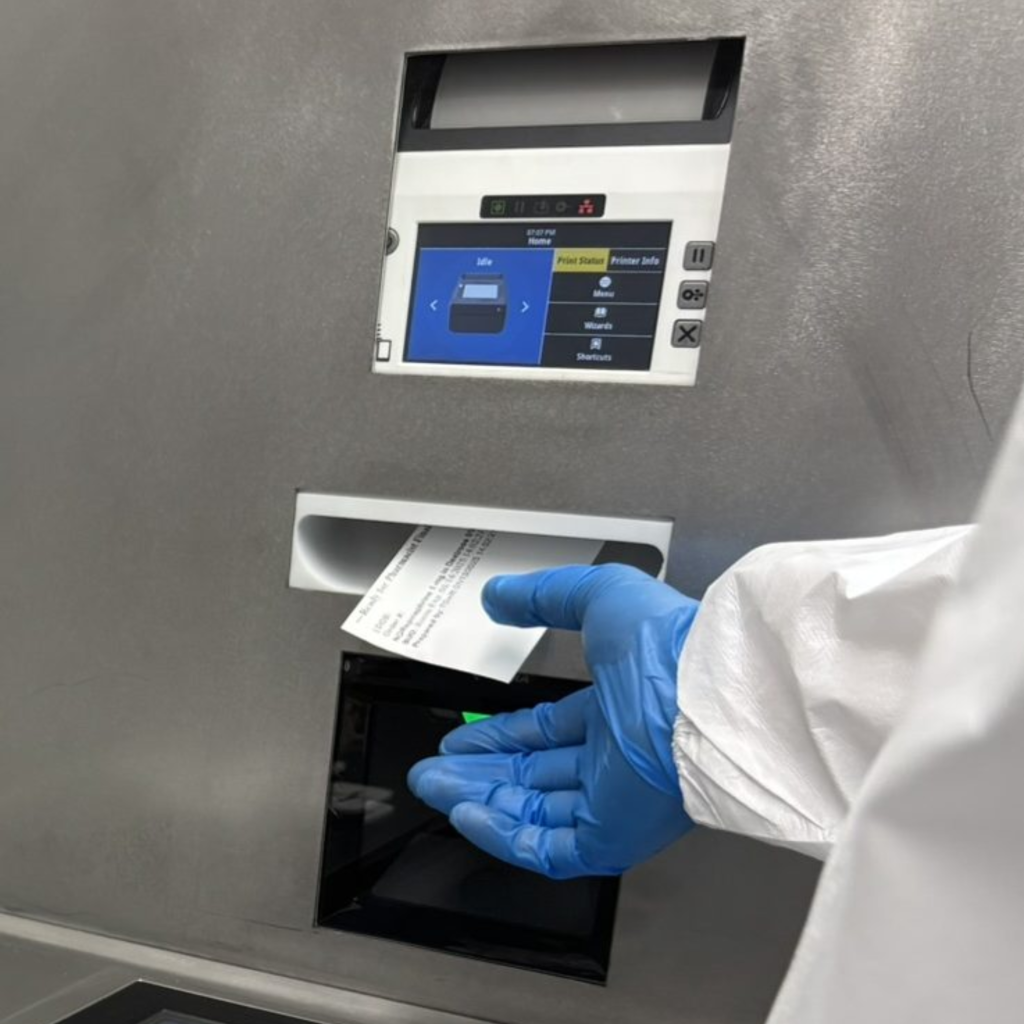

- Zebra ZD621 Printer including Cleanmark labels
The Smarthood™ unit is combined with seamlessly integrated peripheral devices, making it easy to run IV workflow software while maintaining a clean workspace and airflow.
Overall dimensions
| Model | Width | Depth | Height | Work Area Dimensions |
|---|---|---|---|---|
| GF-BSCA-4 | 58" | 34.25" | 58.125" | 48.8" x 26.3" x 25.3" |
Automatic Angled Front Window
Tempered glass front window can be adjusted between settings automatically using the touchscreen HMI
Touch Screen Controls
Large, back-lit touchscreen interface allows full control of BSC. Training videos come pre-loaded and can be viewed directly on the monitor. Password protected diagnostics module allows for easy troubleshooting by service personnel
Low Glare LED Lighting
Diffused LED light minimizes heat build-up and reduces glare. Lights change color to alert user of alarms and when the unit is in night mode
Night Mode
Unit can be placed in Night Mode, closing the front window while maintaining containment
Electrical Requirements
Standard: 115V, 60Hz (220V, 50Hz available)
Electrical Cord
10′ power cord with molded grounded plug
Smarthood™ Integrations
Runs existing IV workflow software
Built-in:
- Mettler Toledo Scale
- Teguar 15.6″ LCD Touchscreen Computer
- Zebra SP72 Series Single-Pane Scanner
- Zebra ZD621 Printer including Cleanmark labels
